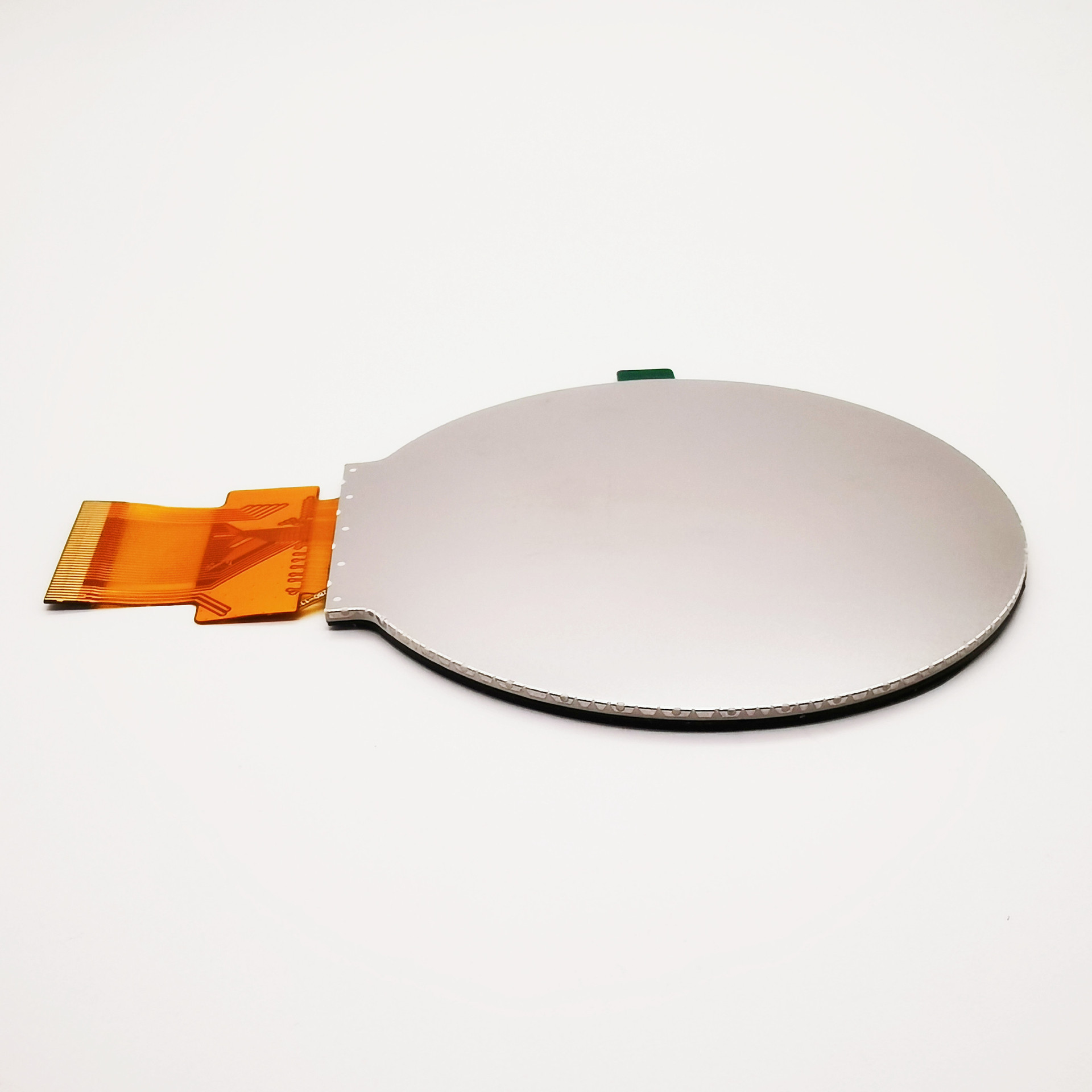

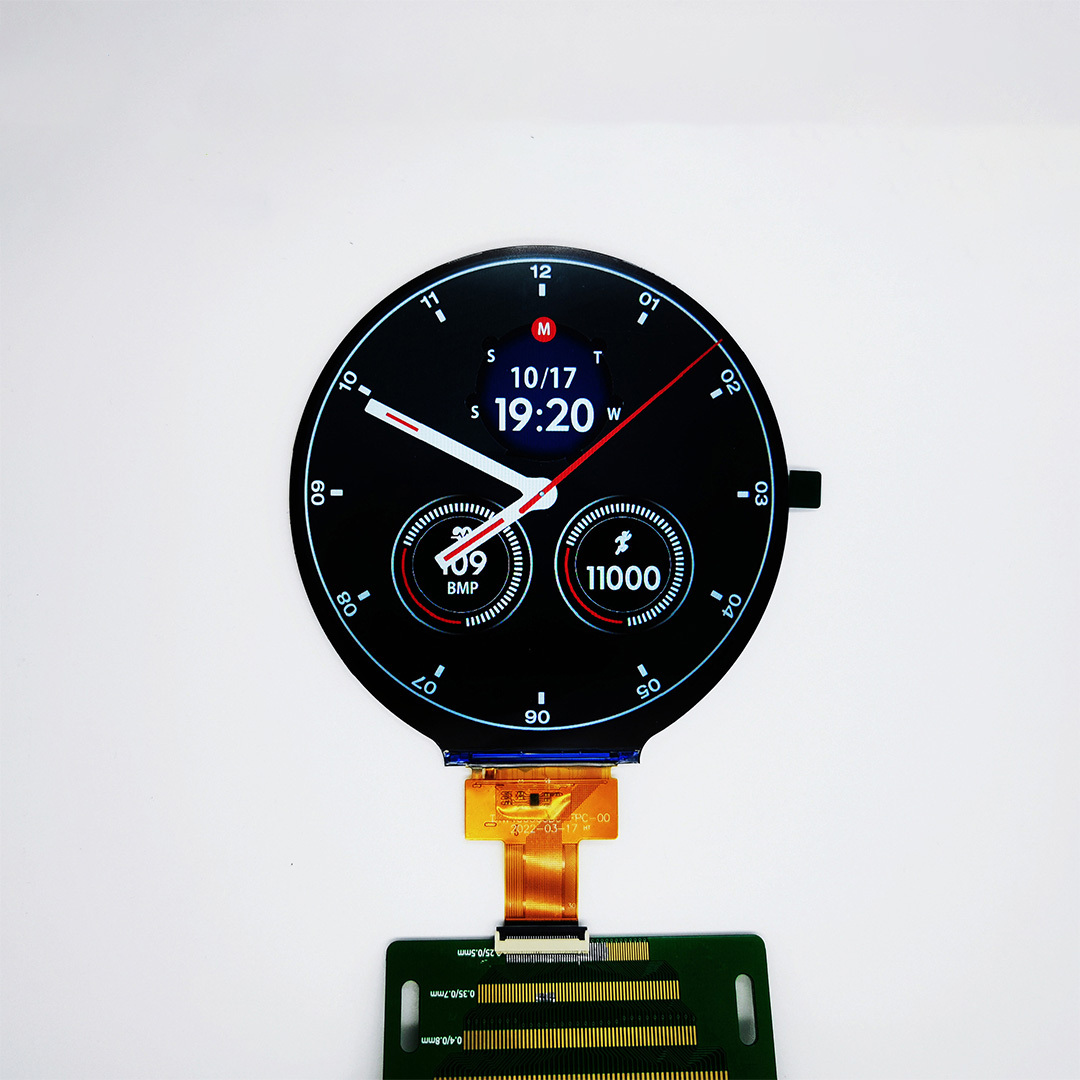

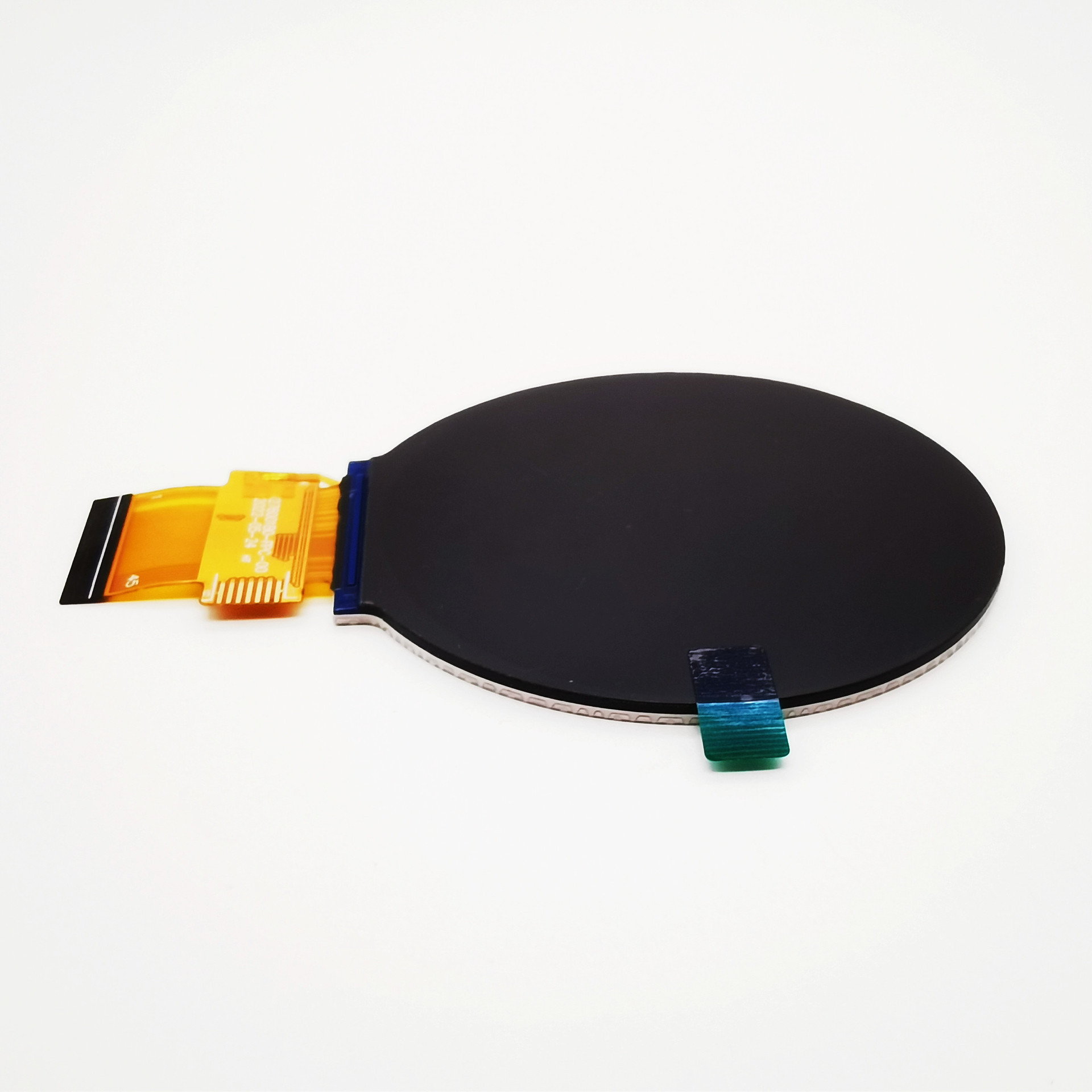

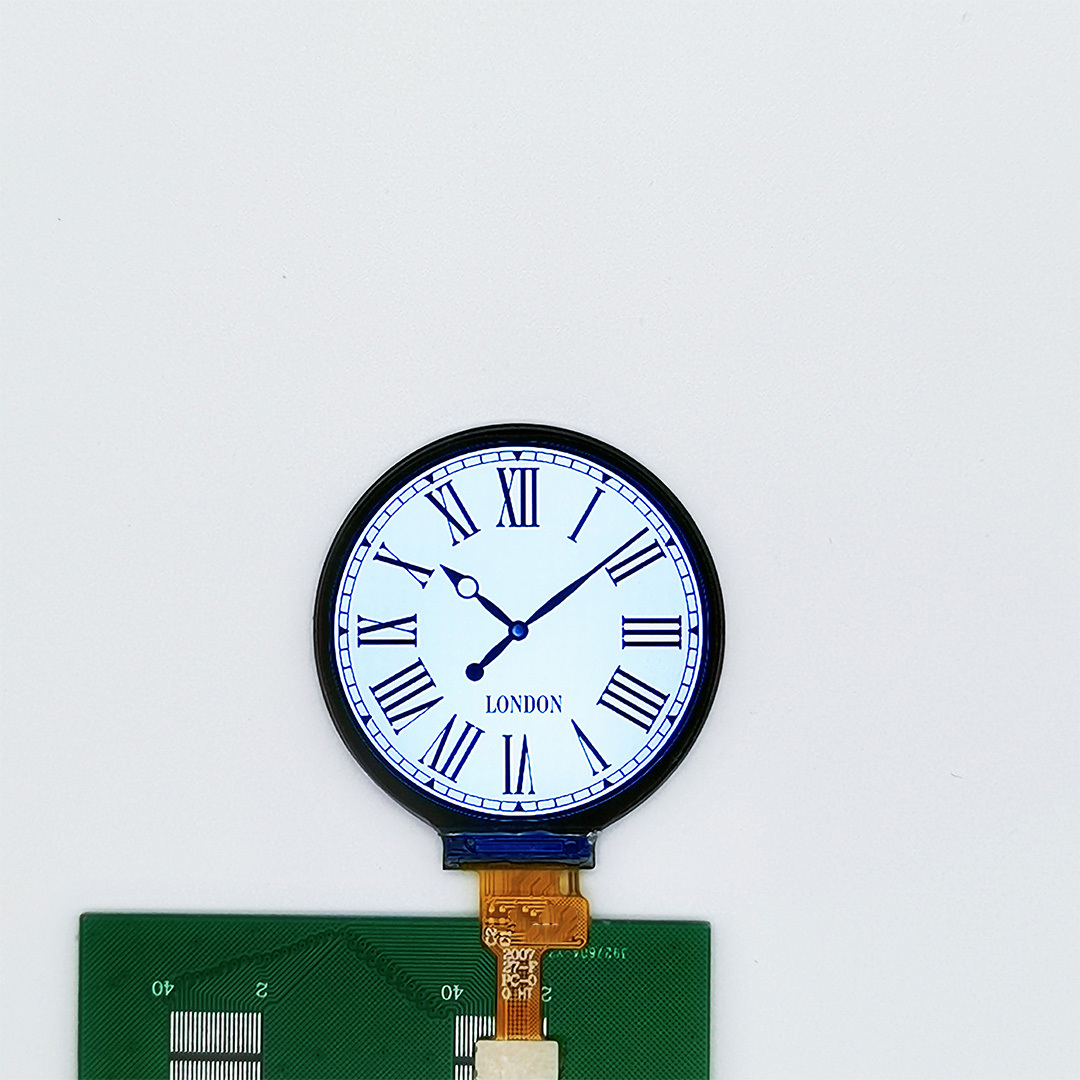

1.54-Inch Smartwatch Display 240X240 IPS 24pin TFT LCD Screen Module with Capacitive Touch
1. INTRODUCTION
RP15401SM is a 1.54-inch circular full color TFT LCD display screen that can be equipped with capacitive touch full fit, resolution 240 * 240, IPS full view high-definition highlight effect, wide temperature -30+80 working temperature, and can support customized display brightness, FPC structure, touch and backlight structure.MCU 24pin interface.
2.Features
| Model Number |
RP154HAN1803A-24P |
| size |
1.54inch |
| Type |
LCD screen+capacitive touch |
| Overall dimensinos |
35.46(W)x41.46(H)x3.8(T)mm |
| Number of pixels |
240*3RGB(H)X240(V) |
| Display Size |
27.72x27.72mm |
| contrast ratio |
300:1 |
| response time |
10ms |
| Color |
262K |
| Angle of view |
IPS |
| LED backlight |
White LED backlight |
| Interface |
MCU/24pin |
| Connection method |
COG+FPC |
| operating temperature |
-20-+70ºC |
| storage temperature |
-30-+80ºC |
| Lumens degrees |
250cd/m² |
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
