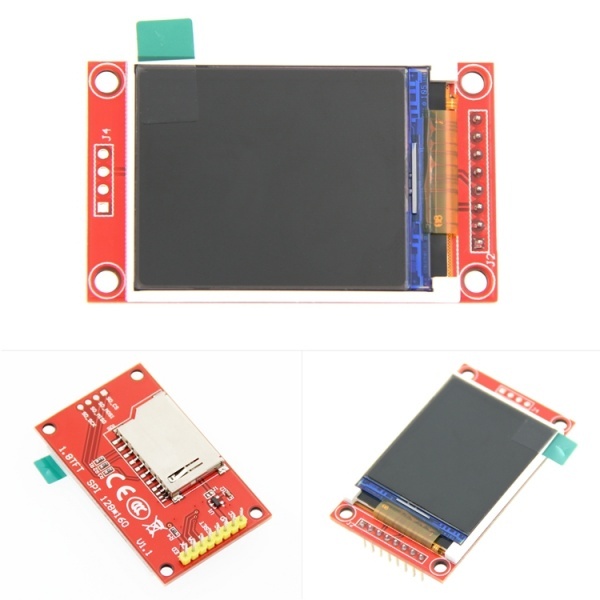

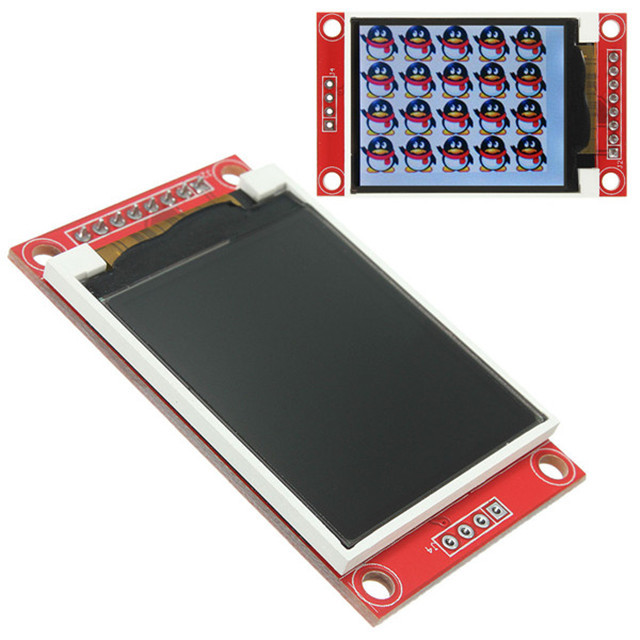

1.8inch SPI lcd display Module with driver IC ST7735S

Item No.: RPMSP1803
The lcd module uses a 4-wire SPI communication method with a driver IC of ST7735S and a resolution of 128x160.The module contains an lcd display and backlight control circuitry.
Description
1.8inch SPI LCD Display Module with driver IC ST7735S
1. INTRODUCTION
The lcd module uses a 4-wire SPI communication method with a driver IC of ST7735S and a resolution of 128x160.The module contains an lcd display and backlight control circuitry.
2.Features
  • 1.8-inch color screen,support 65K color display,display rich colors
  • 128X160 resolution, clear display
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support
3 Product Summary
Name Parameter
Display Color RGB 65K color
SKU RPMSP1803
Screen Size  1.8(inch)
Type TFT
Driver IC ST7735S
Resolution 128*160 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 28.03x35.04(mm)
Module PCB Size 34.5x58.0(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) 17 (g)

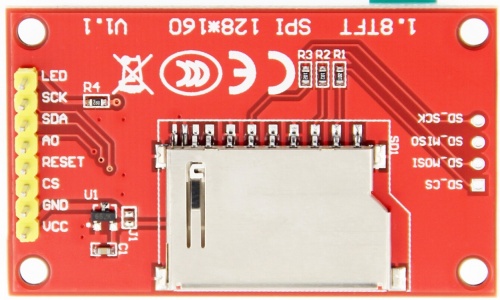

4 Interface Definition
