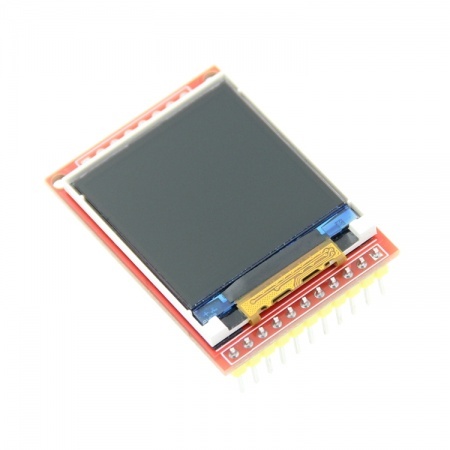

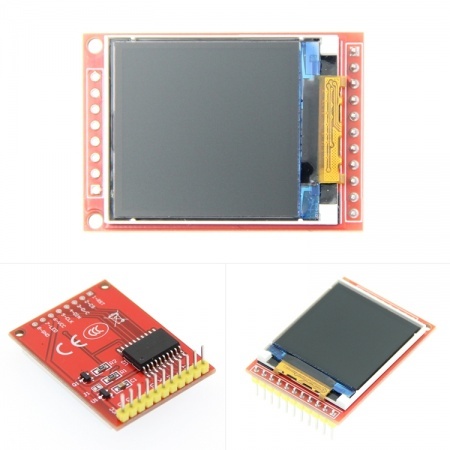

1.44inch SPI lcd display Module with driver IC ST7735S
1. INTRODUCTION
The lcd module uses a 4-wire SPI communication method with a driver IC of ST7735S and a resolution of 128x128.The module contains an lcd display and backlight control circuitry.
2.Features
- 1.44-inch color screen,support 65K color display,display rich colors
- 128X128 resolution, clear display
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
3 Product Summary
Name |
Parameter |
Display Color |
RGB 65K color |
SKU |
RPMSP1443 |
Screen Size |
1.44(inch) |
Type |
TFT |
Driver IC |
ST7735S |
Resolution |
128*128 (Pixel) |
Module Interface |
4-wire SPI interface |
Active Area (AA area) |
26.2x27.2(mm) |
Module PCB Size |
29.7x43.36(mm) |
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
VCC power voltage |
3.3V~5V |
Logic IO port voltage |
3.3V(TTL) |
Power Consumption |
TBD |
Rough Weight(Package containing) |
12 (g) |

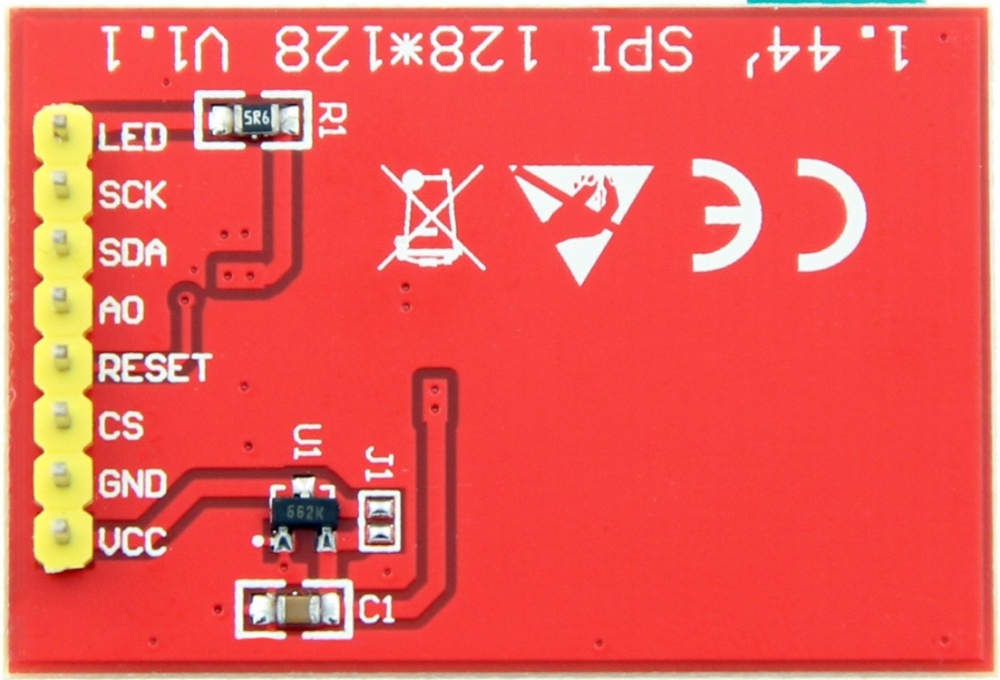

4 Interface Definition
