TFT LCD Display with controller board

10.1inch TFT LCD Display Module with Driver Board for video Door Phone

Model: RP101MA-V0
Dot Matrix: 1024 x 600
Module size: 235.0(W)*143.0(H)*5.1(T)mm
Active area: 222.72(W)x125.28(H)mm

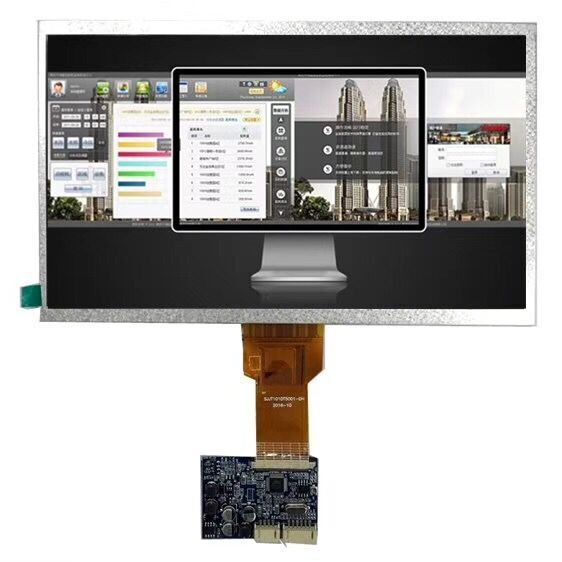

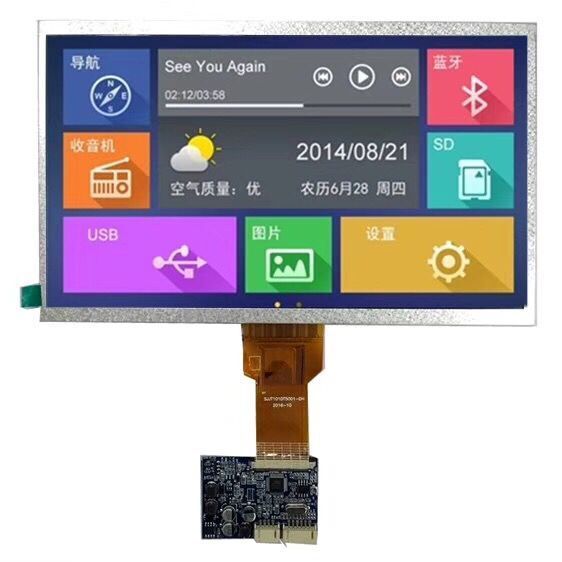

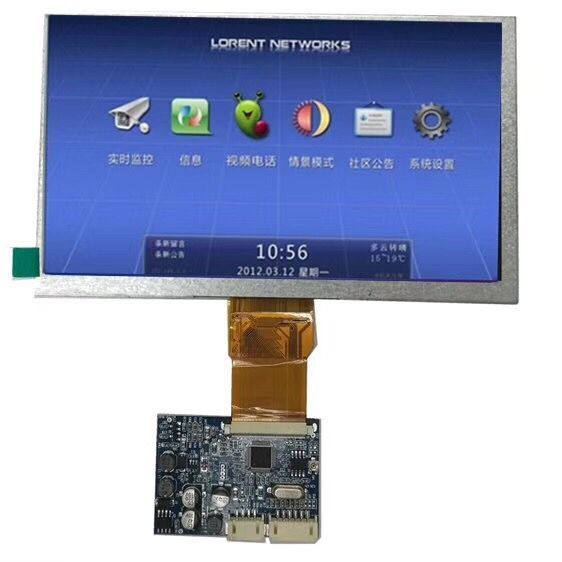

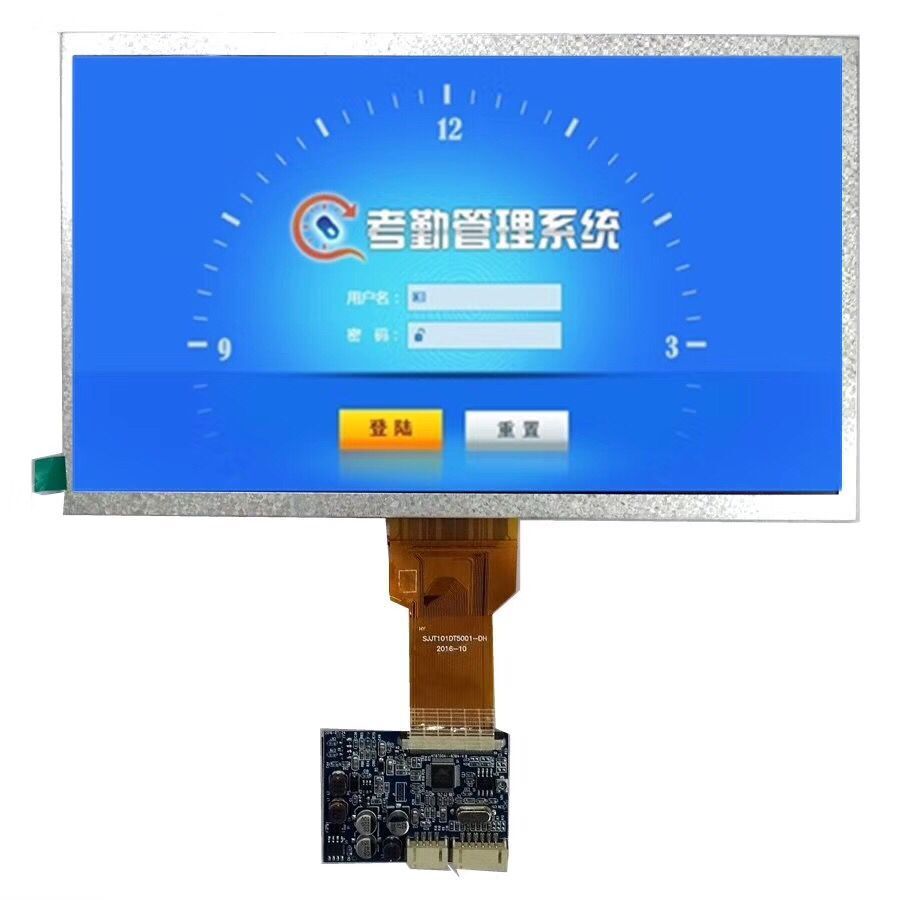

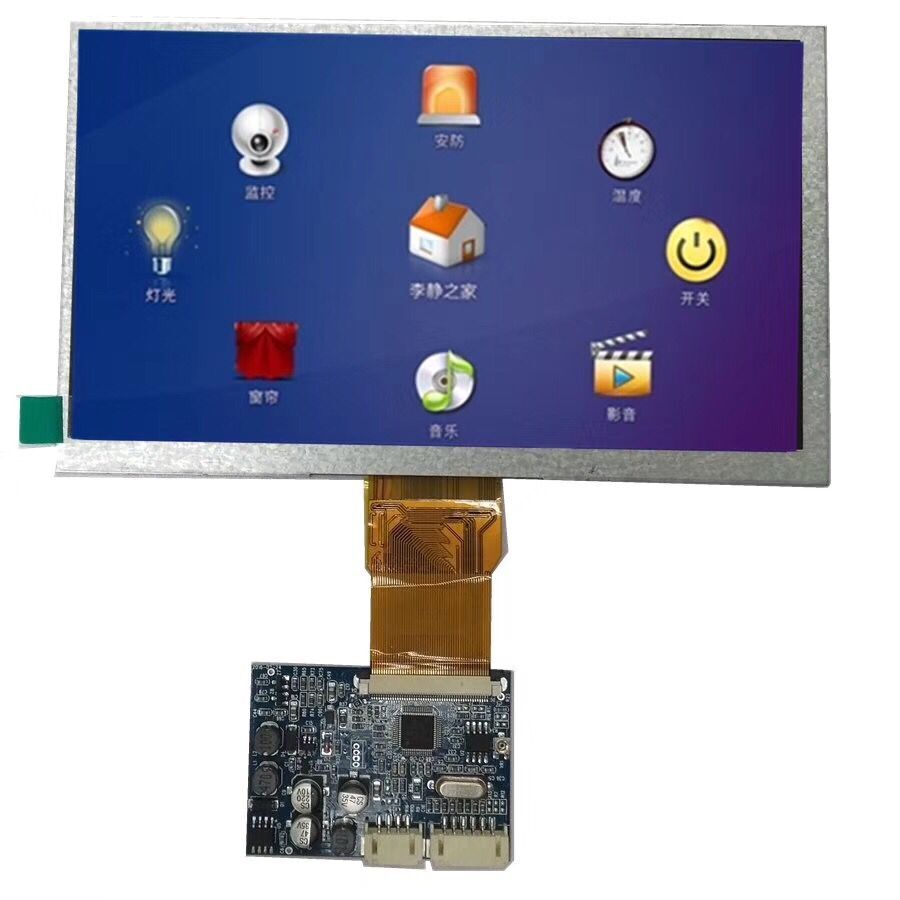

10.1inch TFT LCD Display Module with Driver Board for video Door Phone

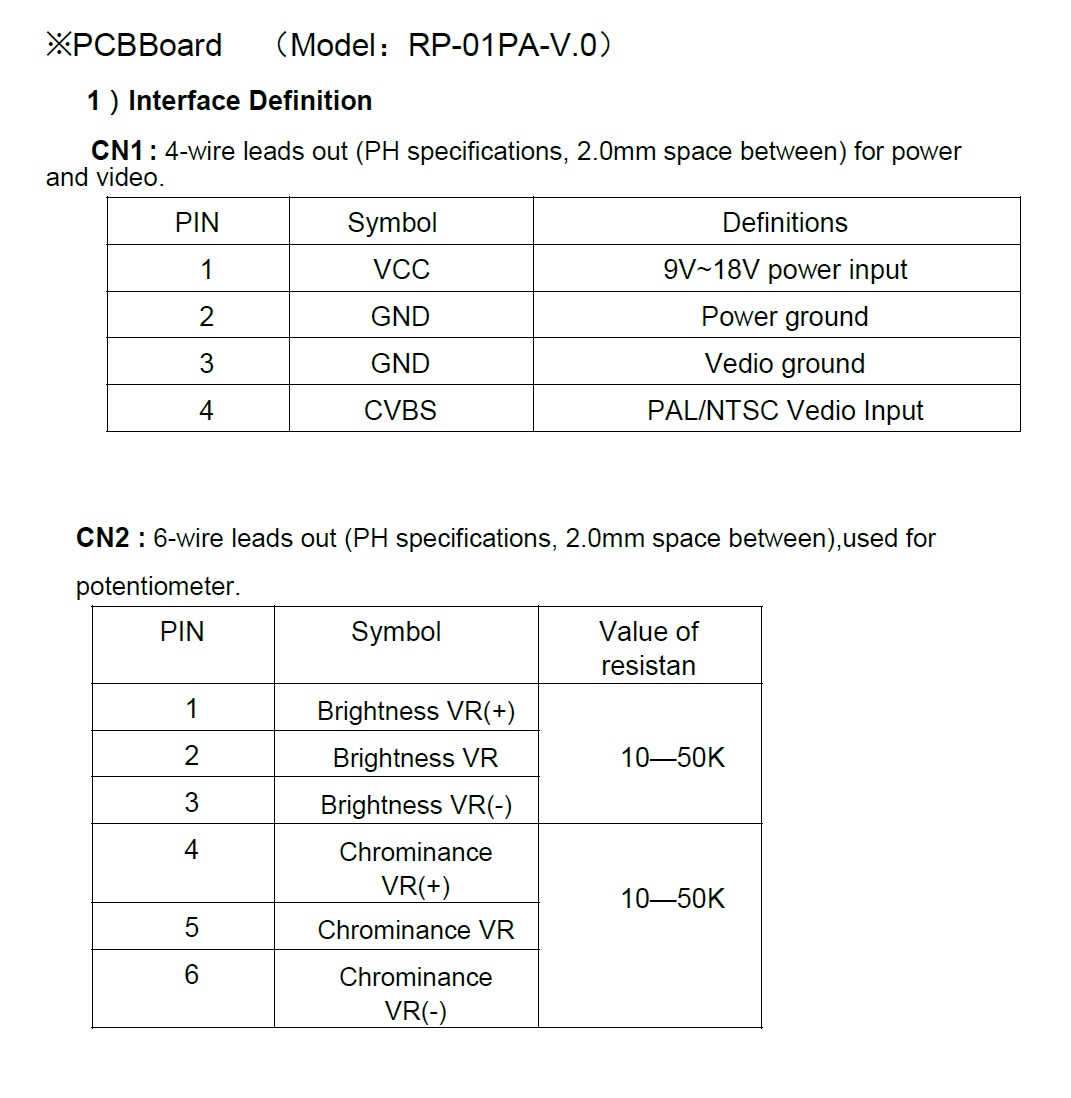

RP101MA module is combined with RP01PA PCB board
and HS 10.1" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.

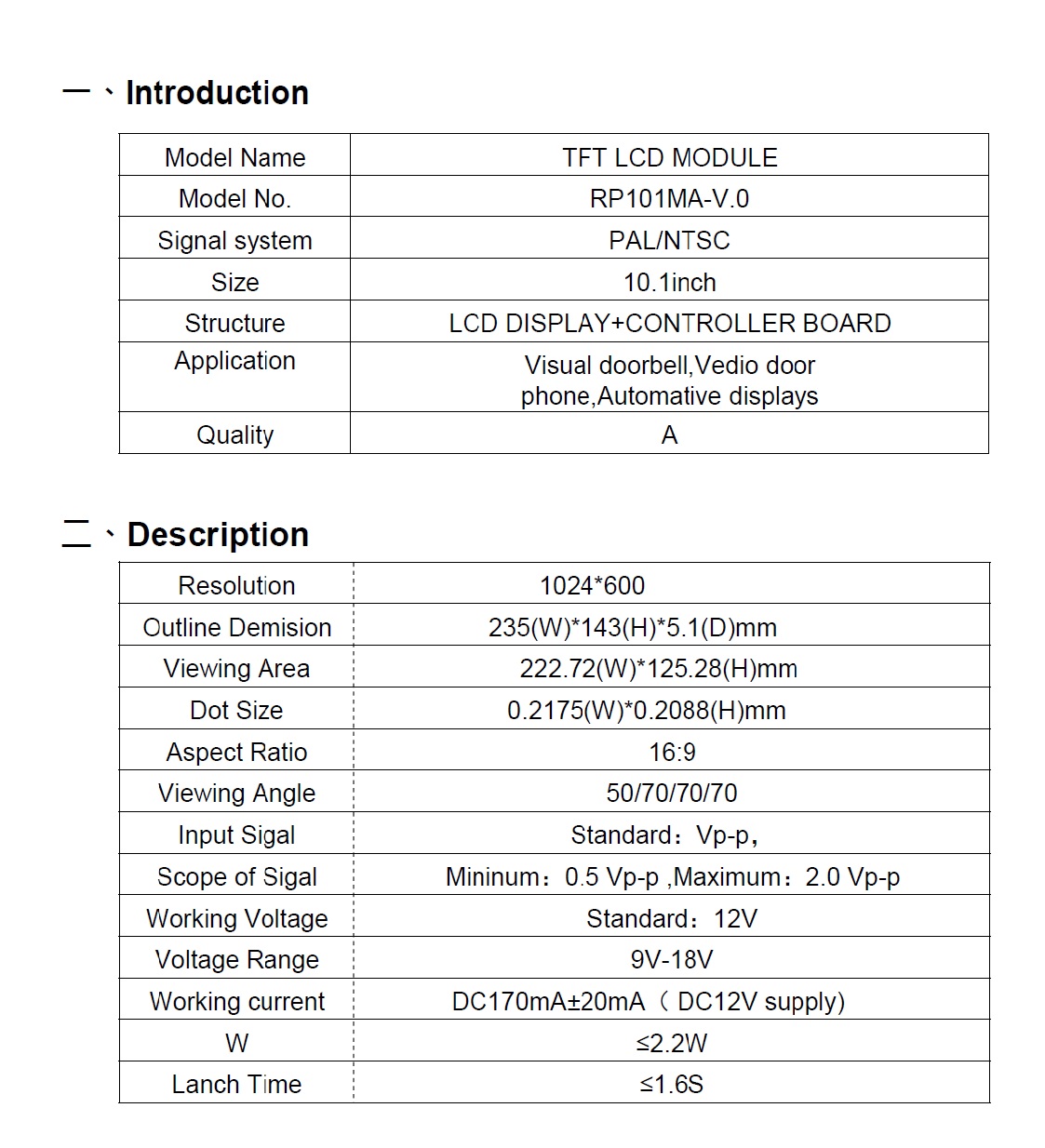

Model: RP101MA-V0
Application Video Door Phone
Resolution 1024*3(RGB)*600
Start Time 1.6±0.5 Sec
Signal Interface  PAL/NTSC
Signal Amplitude Min 0.5Vp-p/Standard: 1.0Vp-p  Max: 2.0Vp-p
Adjust Type  VR and KEY
Working Voltage Min:DC 9V/Standard: DC12V  Max: DC18V
Working Current DC 280mA±20mA (DC12V)
Power Consumption 3.36W(TYP)
Viewing Angle(U/D/R/L) (50/70/70/70)
Panel Outline Dimensions 235.0(W)*143.0(H)*5.1(T)mm
ESD Level Contact +/-6KV,Air  +/-8KV
Operating Temperature: -20 ~ +55ºC
Storage Temperature: -30 ~ +65ºC
