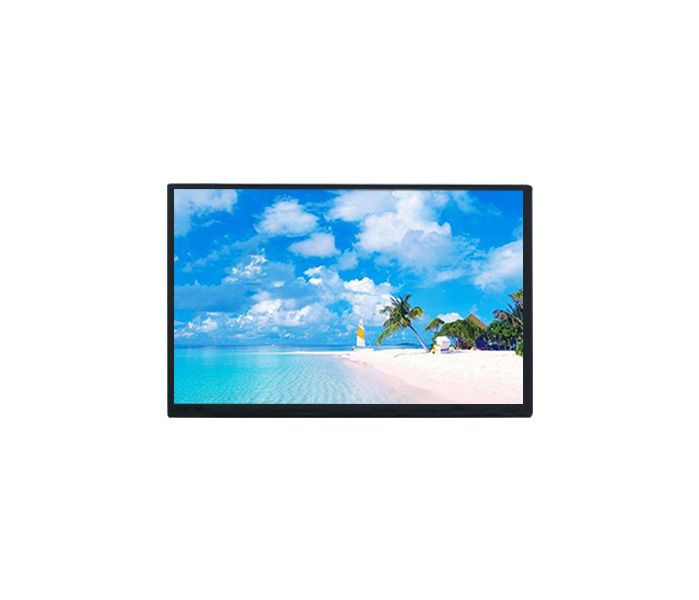

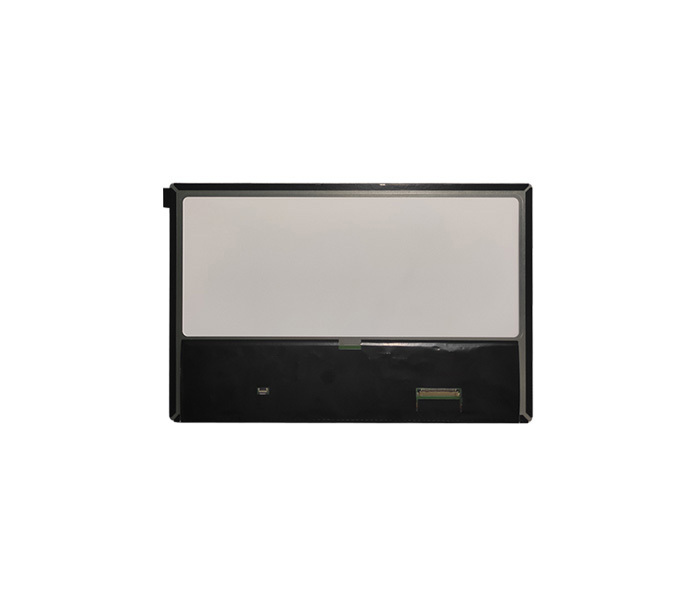

10.1 inch 1280x800 HD TFT LCD display 40pin LVDS interface optional touch screen panel

No.RP101WXM-NN0

TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.

GET A QUOTE

Description

Manufacturer	Reaper
Model Name	RP101WXM-NN0
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800 , WVGA
Active Area(mm)	216.96 x 135.6 (HxV)
Outline(mm)	229.45 x 149.22x 2.62 (HxVxD)
Pixel Pitch(mm)	0.1695(H)×RGB×0.1695(V)
Pixel Arrangement	Pixels RGB stripe arrangement
Display Mode	Normally Black
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	R/L/U/D 80/80/80/80 (CR≥10)
Display Colors	16.7M(6bit +Hi-FRC)
Surface Treatment	HC
Response Time	35(typ.)/40(max.)
Color Gamut	50%NTSC
Power Consumption	Panel: 0.6(Typ.) 0.8（Max.）
Back-light	Bottom edge side, 1-LED Lighting Bar Type
Touchscreen	without
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)

Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
